This guide explains how to configure and interface a custom motion controller using serial communication. It is intended for users integrating third-party hardware or building DIY motion systems.

⚠️ This system cannot drive arbitrary hardware. You must know and understand the serial protocol expected by your controller (message structure, command format, required timing, etc.).

Add a New Controller

Start by creating a new Generic serial output

Assign the serial port and enter the Serial commands configuration

Protocol configuration

Serial Settings

Configure the serial port settings to match your controller:

Setting
Description

Baudrate

Common values include 9600, 38400, 115200, etc.

Stop bits

Usually set to 1 or 2, depending on the controller.

Data bits

Typically set to 8.

Parity

Choose None, Even, or Odd as required.

Idle delay after serial port opening (ms)

Optional delay (in milliseconds) after opening the serial port before sending any commands. Useful if the device needs time to initialize.

RTS / DTR

Enable these only if your device requires them to boot or begin communication.

Many modern USB-to-serial chips require RTS to be enabled, and sometimes DTR as well, to properly trigger communication. However, on older usb to serial-based Arduino boards, enabling DTR will often cause the board to reset on connection, making it temporarily unavailable. In such cases, you can use the Idle delay after serial port opening setting to allow the device enough time to fully reboot before any data is sent.

Protocol Settings

3.1 Number of Controlled Axes

Set how many axis values you want to send to the controller (e.g., 6 for a 6DOF platform).

3.2 Axis Output Format

Choose how axis values are formatted in the serial output:

  • Binary – Sent as raw bytes (e.g., 0xFF)

  • Decimal (string) – Sent as text (e.g., "127")

  • Hex (string) – Sent as hex-encoded string (e.g., "7F")

3.3 Axis Resolution (Bit Range)

Defines the numeric resolution of each axis. It affects the value range produced by placeholders like <Axis1>. Choosing a higher resolution than the hardware is capable of improves flexibility and avoids future limitations.

Bits
Range
Center Value
Bytes (Binary Format)
Typical Use

8

0–255

127

1 byte

Only if your hardware explicitly requires 8-bit values

10

0–1023

511

2 bytes

Arduino analog resolution; reasonable for smooth control

12

0–4095

2047

2 bytes

Balanced precision and compatibility

16

0–65535

32767

2 bytes

Recommended for most new custom protocols

Recommendation: Use 16-bit resolution if you're designing your own firmware/protocol. The slight increase in data size is worth the precision and ease of scaling.

Command Phases

You can define different messages for three phases of controller activity:

Phase
Description

Startup Commands

Sent once when the controller is activated (e.g., SimHub motion connects, axis test starts). Often used for initialization.

Motion Update Commands

Sent repeatedly during active motion updates (typically once per frame).

Shutdown Commands

Sent once when the controller is deactivated (e.g., SimHub disconnects, test stops). Used for safe shutdown or reset.

When are commands Sent?

Commands are only transmitted when the controller is actively in use:

  • When axis assignation testing is running

  • When manual control is enabled

  • When game effects are running

If none of these are active, no commands are sent, even if the serial port remains open.

SimHub may keep the port open while idle to:

  • Prevent other applications from taking control of the port

  • Allow for faster resume when motion is reactivated

No serial data is sent during this idle period.

Each command allows:

  • A customizable command string

  • An optional delay (in ms)

  • An optional "wait for response" before continuing

Command Syntax

Use placeholders to insert dynamic data into your command strings.

Axis Placeholders

Axis values represent the computed actuator positions based on platform geometry and motion logic. The controller configuration in SimHub is purely focused on communication — it does not define or interpret motion roles (like surge, heave, or roll).

Each controller simply receives the values it is told to expect. The actual computation of those values is handled earlier in the SimHub pipeline using the platform's geometry and motion profile.

Use the following placeholders to represent axis values:

  • <Axis1>, <Axis1a>, <Axis1b>, etc.

Repeat for each axis (e.g., <Axis2>, <Axis3>) depending on your axis count.

These placeholders reflect the current values of each axis in the selected output format (binary, decimal, or hex). They are case sensitive.

Two additional shortcuts for compatibility with other software exits

  • <Left> shorthand for <Axis1>

  • <Right>shorthand for <Axis2>

Hex Character Placeholders

You can insert literal byte values using the following syntax:

  • Decimal byte: <13> (carriage return)

  • Hex byte: <0xFF> (sync byte, for example)

These are inserted as raw bytes in binary output.

Setting Placeholders

If you define settings via the Protocol Control Panel (see below), you can insert them using:

<Setting,settingname,settingformat>

For example:

<Setting,speed,0.0>

Examples

Example
Description

<0xFF>Update<Axis1><Axis2><13>

Sends a sync byte, followed by axis 1 and 2 values, then a carriage return

Start<0xAA><0xBB>

Typical startup command using two header bytes

Stop<10><13>

Ends with a line feed and carriage return

Protocol Control Panel (Optional)

You can define custom parameters that can be reused in your messages.

Available UI elements:

  • Textbox – Free-form text

  • Checkbox – Boolean flag

  • Slider – Range selector

  • Combobox – Dropdown menu

  • Group – Logical grouping

  • Computed setting – Dynamically calculated values

Use these with the <Setting,...> placeholder.

Best Practices and Recommendations

  • Use higher resolution (12 or 16 bits) for most new projects

  • When debugging:

    • Use a serial monitor (e.g., RealTerm, Arduino Serial Monitor) for early testing

  • Include start/sync bytes if your controller expects a specific header

  • Use delays if your controller cannot handle rapid updates

  • Avoid optimizing for byte count too early; prioritize readability and compatibility

* We’ve used Free Serial Analyzer for years (in its paid version); the free version (with some limitations) is often sufficient for basic troubleshooting.

Limitations

  • This feature does not automatically adapt to unknown hardware

  • You must:

    • Know your controller’s protocol

    • Understand its timing and formatting

    • Test it manually during development

Failure to configure the protocol correctly may result in no movement or unexpected behavior.

Axis assignment

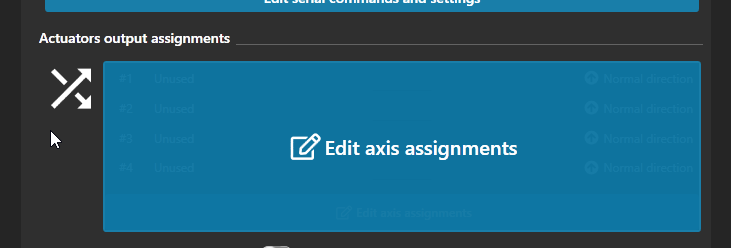

Once the protocol configured, you can assign and test the axis with "Axis assignment"


For deeper diagnostics, consider using a serial sniffer to observe actual communication without interfering (e.g., * )

https://freeserialanalyzer.com/
